Product Description

Insulated Tiny House Solari 5.09 × 8.59 m

The Insulated Tiny House Solari 5.09 × 8.59 m is a modern, compact, and energy-efficient home designed for comfortable year-round living. With a smart layout of four rooms plus a loft, this model combines practicality with contemporary style. High-quality Nordic spruce, integrated insulation, and Premium Plus double-glazed windows and doors ensure excellent thermal performance, while optional features like a spacious terrace provide even more versatility.
Perfect for permanent residence, a holiday retreat, or a stylish guest house.

📐 Insulated Tiny House 5.09 × 8.59 m — Technical Specifications

Building width × length	5.09 × 8.59 m
Internal area	50.6 m² (4 rooms)

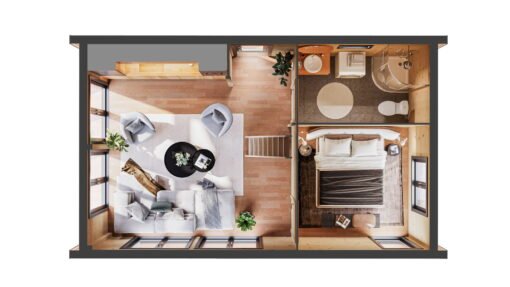

Room layout	Living room 22.5 m²; Room 8.6 m²; Room 5.4 m²; Loft 13.3 m²
Optional terrace	32.7 m²
Side wall height	2.70 m
Ridge height	4.05 m
Roof pitch (per side)	30°
Roof area	50.5 m²
Roof boards	19 mm tongue-and-groove
🧱 Wall build-up (inside → outside)	44 mm solid log; vapour control layer; ~100 mm mineral wool; windproof membrane; ventilated cavity; 18–20 mm timber cladding
🪵 Floor build-up	19 mm T&G boards; structural joists; ~100 mm insulation; vapour/wind barrier; (on concrete: plastic membrane, bearers, Rockwool or EPS)
🏠 Roof build-up	Roof finish (e.g., shingles) → battens & underlay → breathable membrane → ~100 mm mineral wool → 19 mm T&G roof boards
Indicative U-values*	Walls ~0.30–0.35 W/m²K; Roof ~0.23–0.28 W/m²K; Floor ~0.30–0.35 W/m²K
Doors	1 double-glazed external door ~160×200 cm; 3 internal doors ~80×200 cm
Windows	5 units: 2 full-height glazed panels (~85×200 cm) + 3 standard windows (~80–120 × 100 cm)
Glazing	Premium double-glazed windows and doors
Material	Certified Nordic spruce
External wall surface	57 m²
Number of rooms	4

Included in the standard package:

Floor bearers, floor and roof boards, walls, and roof purlins
Premium Plus double-glazed windows and doors
10 cm roof insulation kit
10 cm floor insulation kit
10 cm wall insulation kit
Bitumen roof shingles with underlayer
Exterior metal window sills

🚛 Terms of Delivery

💰 Price includes VAT (EXW Lithuania)
🌍 Delivery available across Europe
📦 Standard delivery does not include unloading – request unloading if required
🧾 EU companies with valid VAT ID can receive a 0% VAT invoice
🌐 Non-EU buyers are responsible for import duties and taxes

🔗 Useful Links

🎥 Example: How our cabins are built
🎥 How to install shingles
📄 Drawings for municipality confirmation

Additional Information

Weight	600 kg
Dimensions	325 × 120 × 50 cm
Wall thickness	44 mm, 66 mm

Sale!

Insulated tiny house with loft Solari 5.09 x 8.59 m

Name: Insulated tiny house with loft Solari 5.09 x 8.59 m
SKU: DALV-SOLARI-IV
Availability: BackOrder

Original price was: €22,800.Current price is: €21,300.

Price on Request:

✨ Painting for windows & doors
🪵 Additional wooden foundation slab
